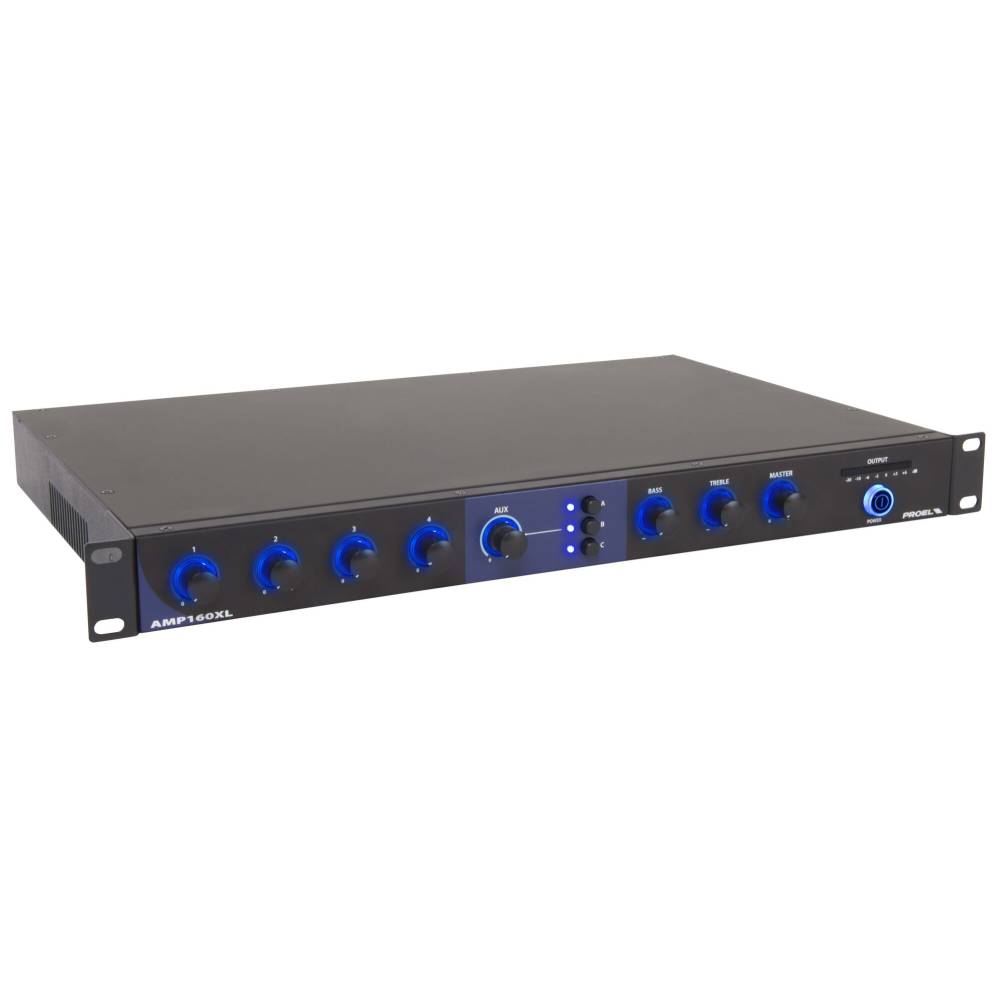

Mixer Amplifier 160W PROELPA AMP160XL

Description

160W, 70/100V, 4Ω professional mixer amplifier.

This new series of audio power amplifiers was designed to fulfil an evolving market in the most flexible and professional manner.

The new range responds to precise operating criteria and was designed and tested to guarantee total reliability of use, also with continuous operation.

Thanks to the use of power supply switching with SMPS (switch mode power supply) technology and to the constant voltage output 70/100V obtained electronically without transformers, it was possible to design the amplifier in only one rack unit, succeeding in containing the weight and size.

• Output power RMS: 160W
• Inputs: 4xMIC/LINE balanced – 3 AUX (selectable) – 1x MAIN IN (normally connected to PRE OUT)
• Input Sensitivity:  MIC: -40dBV / 600 Ω balanced (with 48Vphantom) – LINE: 0dBV / 100 KΩ balanced – AUX: 0dBV / 47 KΩ unbalanced – MAIN IN: 0dBV / 10KΩ unbalanced
• Signal Output: PRE OUT (normally connected to MAIN IN) – PRE OUT: 1V / 600 Ω – REC OUT: 1V / 600 Ω -BAL OUTPUT:1V / 600 Ω

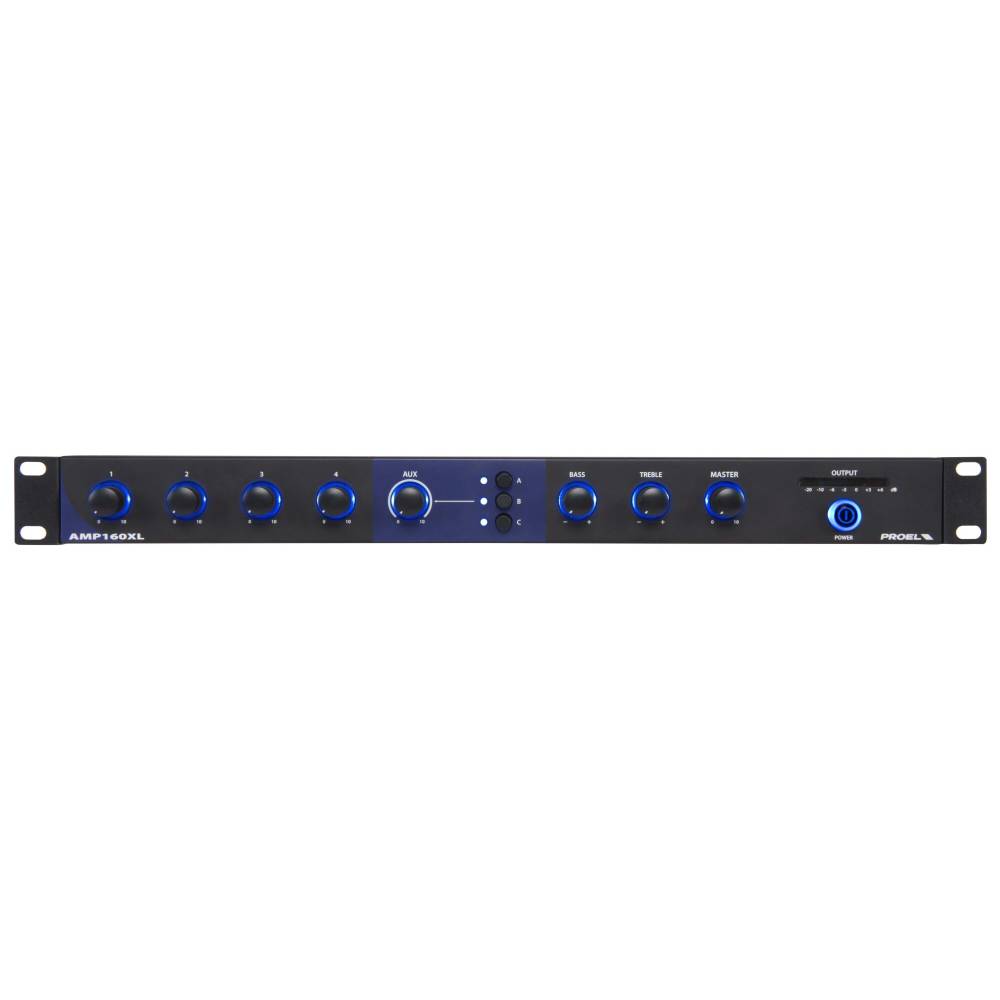

• Controls: MASTER VOLUME CONTROL  -1 TREBLE TONE CONTROL -1 BASS TONE CONTROL – 4 MIC/LINE VOLUME CONTROLS -1 AUX VOLUME CONTROL
• Loudspeakers outputs: 100/70V/4Ω
• Frequency response: 80Hz -16KHz (-3dB)
• Distortion (THD): < 0.5% (@ Pnom 1KHz)
• S/N Ratio MIC: ≥70dB LINE: ≥70dB AUX: ≥80dB
• Power Supply: autoswitch 100-240V~ 50/60Hz
• Operating temperature: 0 -40°C
• Input/Output Connectors: terminal block RCA
• Power Consumption: 160VA
• Dimensions (LxHxP): 439 x 44 x 278 mm 483 x 44 x 278 mm – 1U rack19”
• Weight: 5 Kg
